PVC PRODUCTS

WINDOWS

AMAA CW 80

76mm Softline

Class A profile, lifelong durability, 6 chambers

Energy Efficiency:

Uf (frame) = 0.229 BTU/hr.ft2.F (DAW)
Uw (24mm, double pane) = 0.229 BTU/hr.ft2.F (DAW)
Uw (40mm, triple pane) =  0.162 BTU/hr.ft2.F (DAW)

Air infiltration per ASTM E283 at 75 Pa: 0.01 L/s/m²

MORE INFO

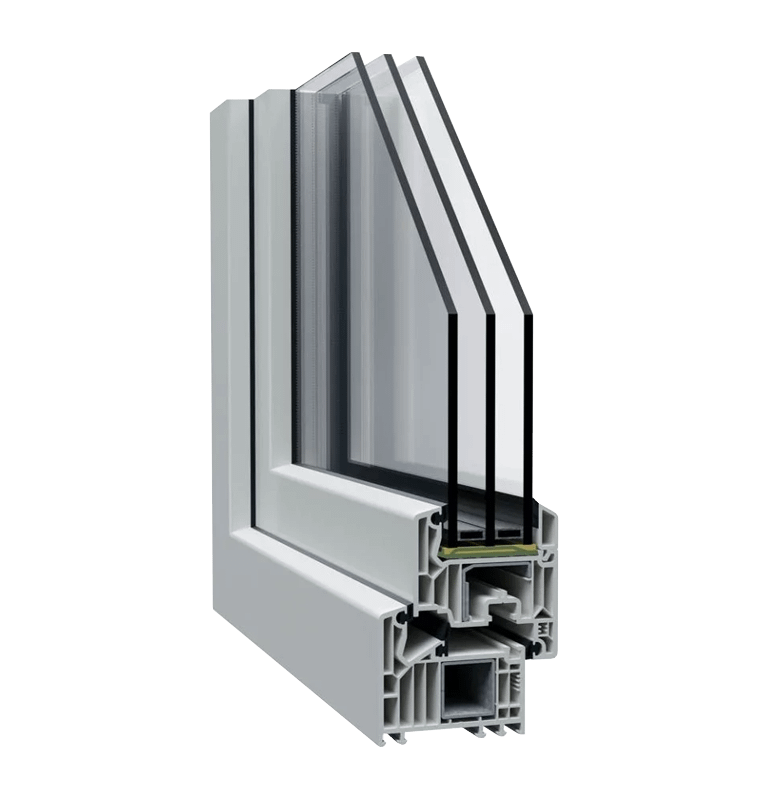

AMAA CW 80

82mm Softline

Class A profile, lifelong durability, 7 chambers

Energy Efficiency:

Uf (frame) = 0.176 BTU/hr.ft2.F (DAW)
Uw (44mm, triple pane) = 0.133 BTU/hr.ft2.F (DAW)
Double pane option not available for this frame

Air infiltration per ASTM E283 at 75 Pa: 0.01 L/s/m²

MORE INFO
Aluminum Doors
PVC Windows
Folding Doors
Windows
Passive House
Install

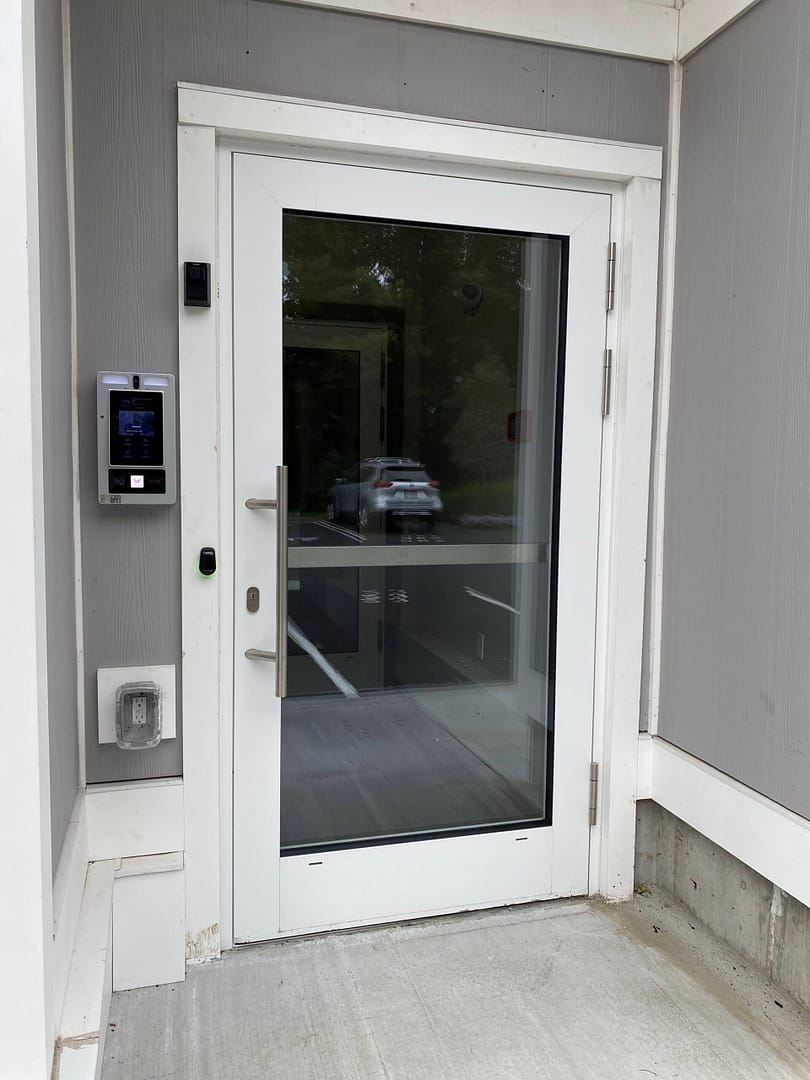

IMG_6015

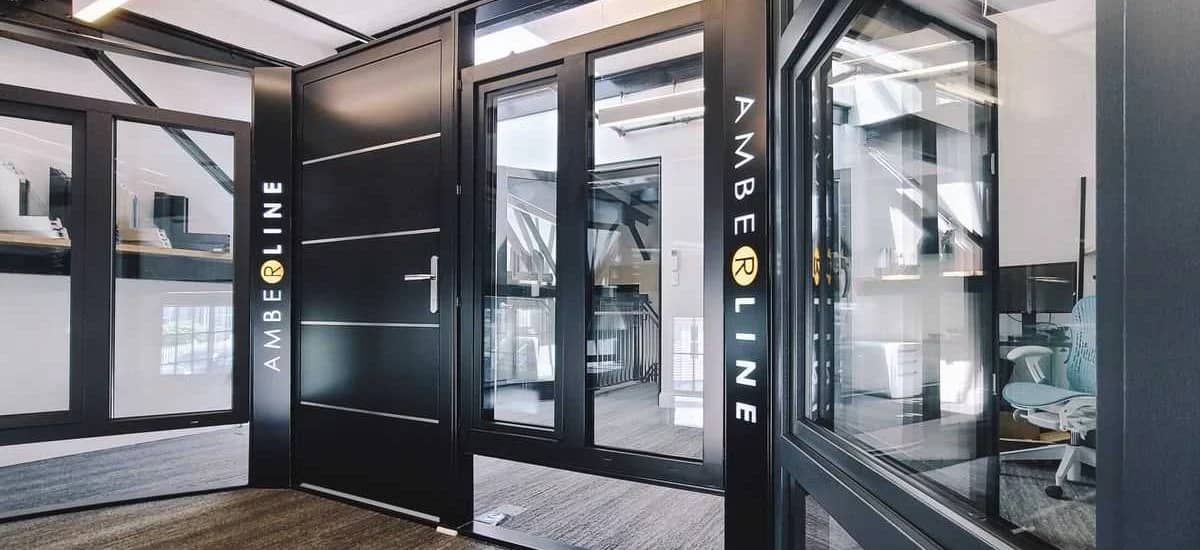

webpc-passthru-3

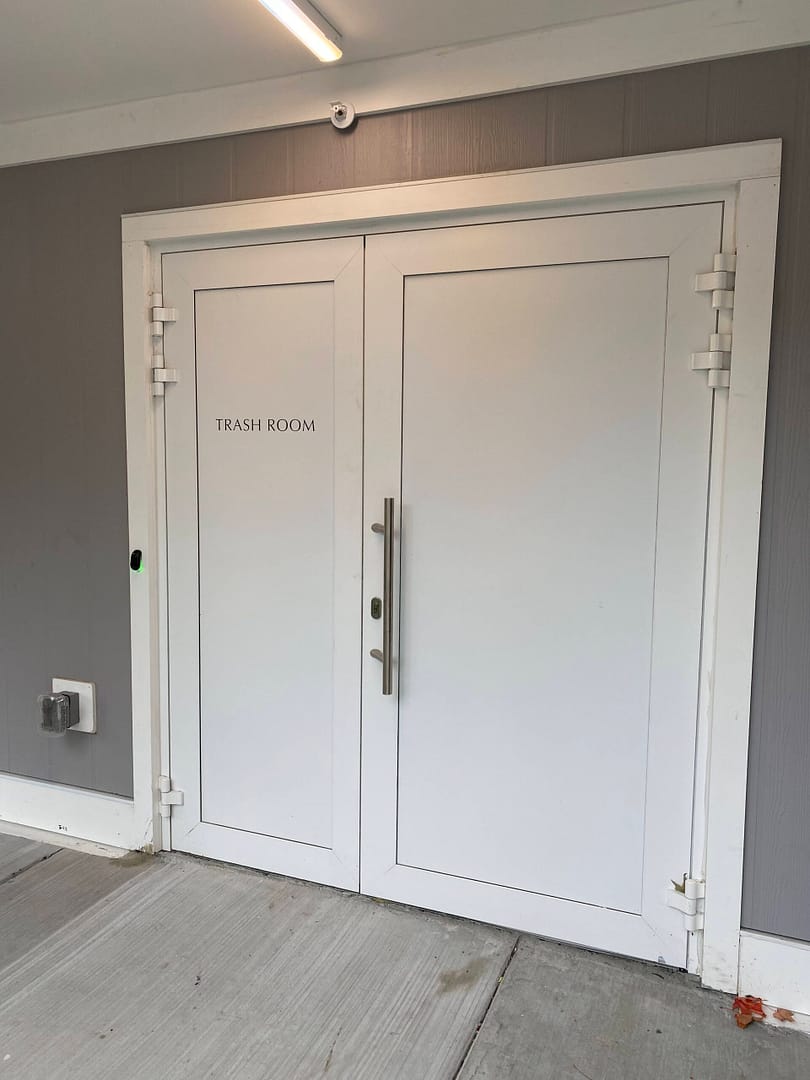

IMG_6018

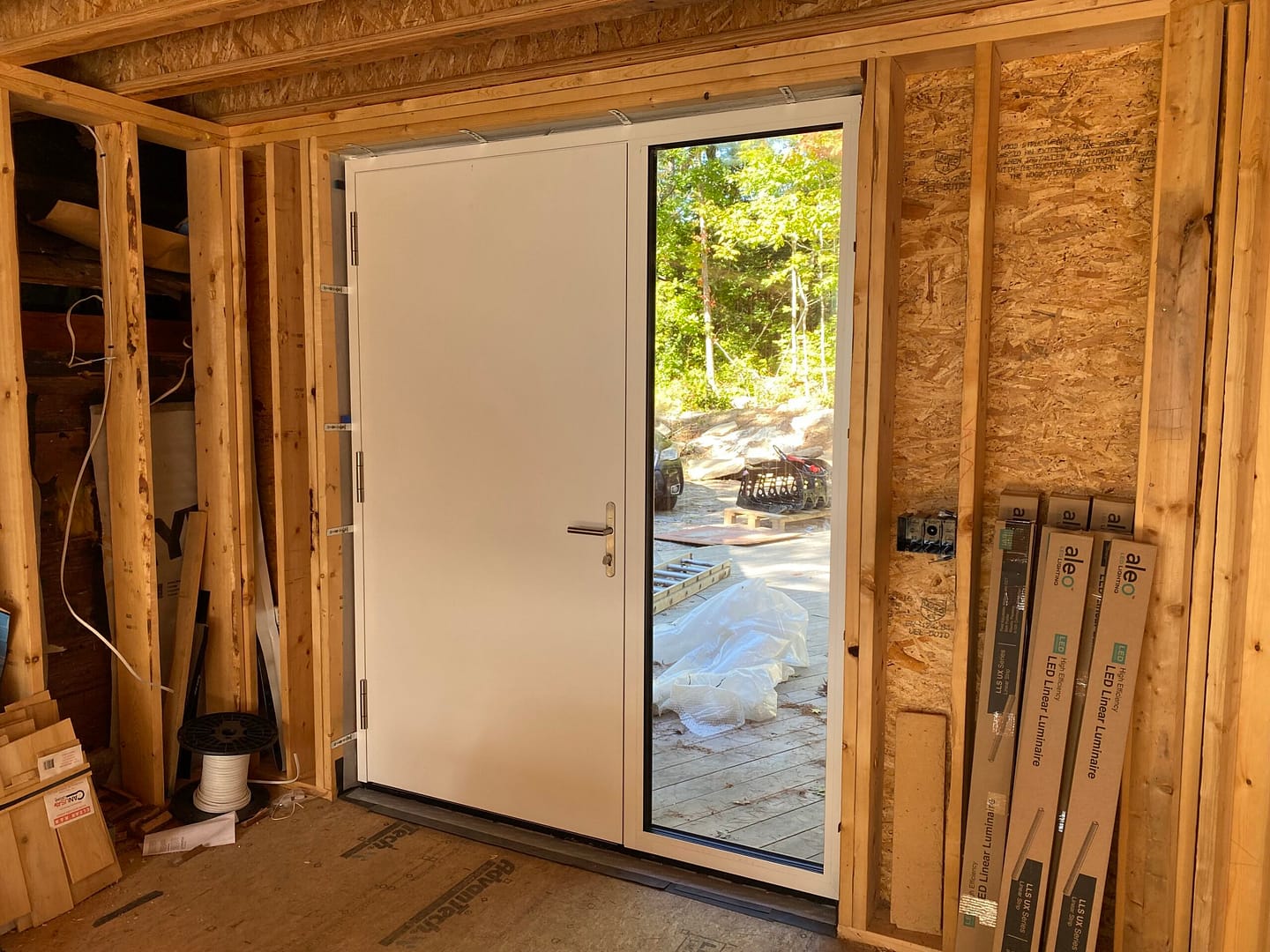

IMG_5942

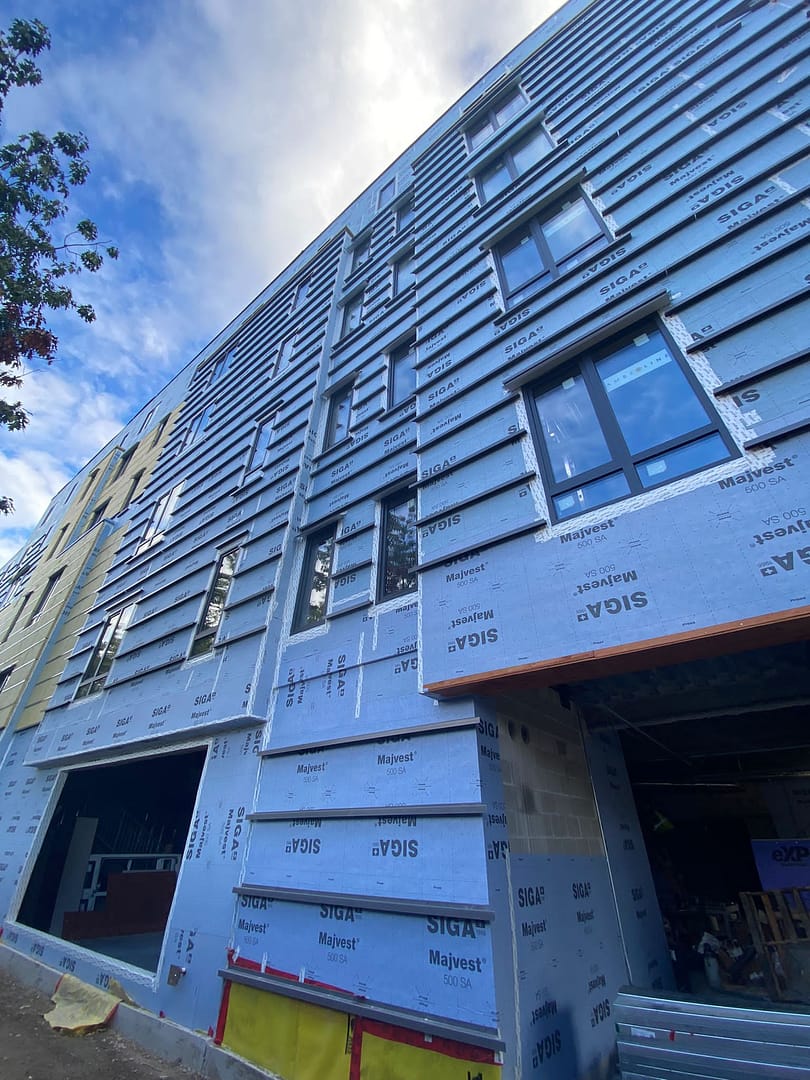

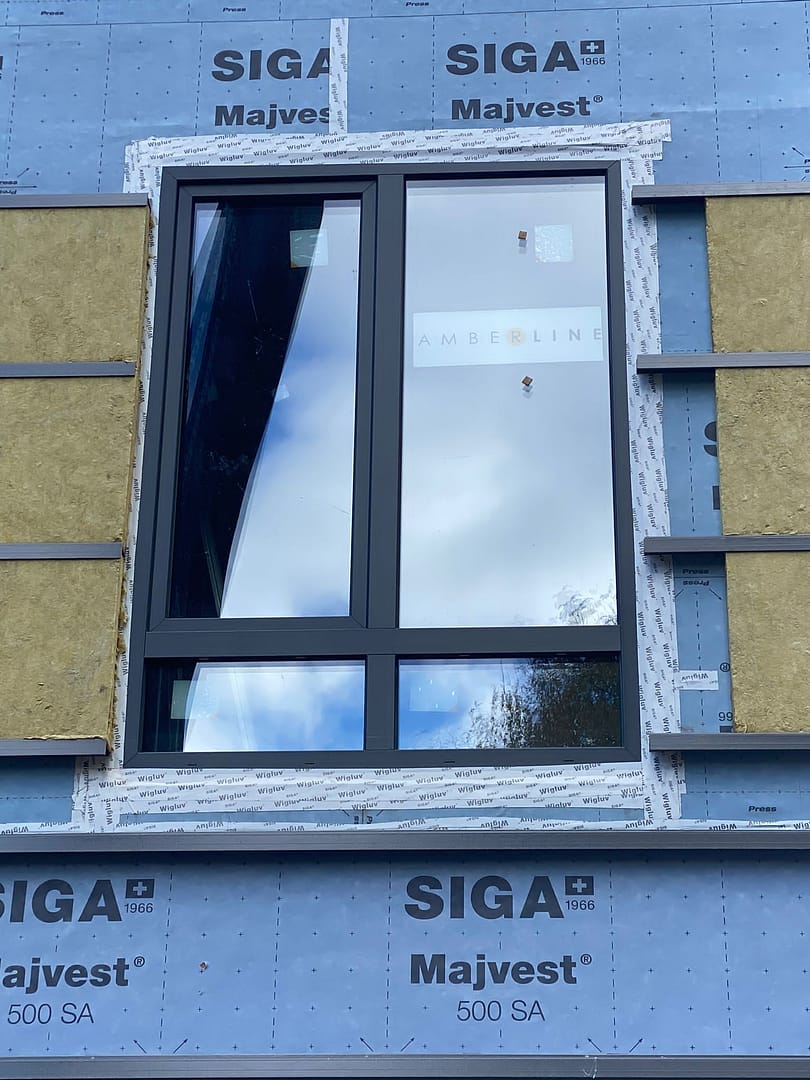

PHOTO-2023-10-17-10-15-18

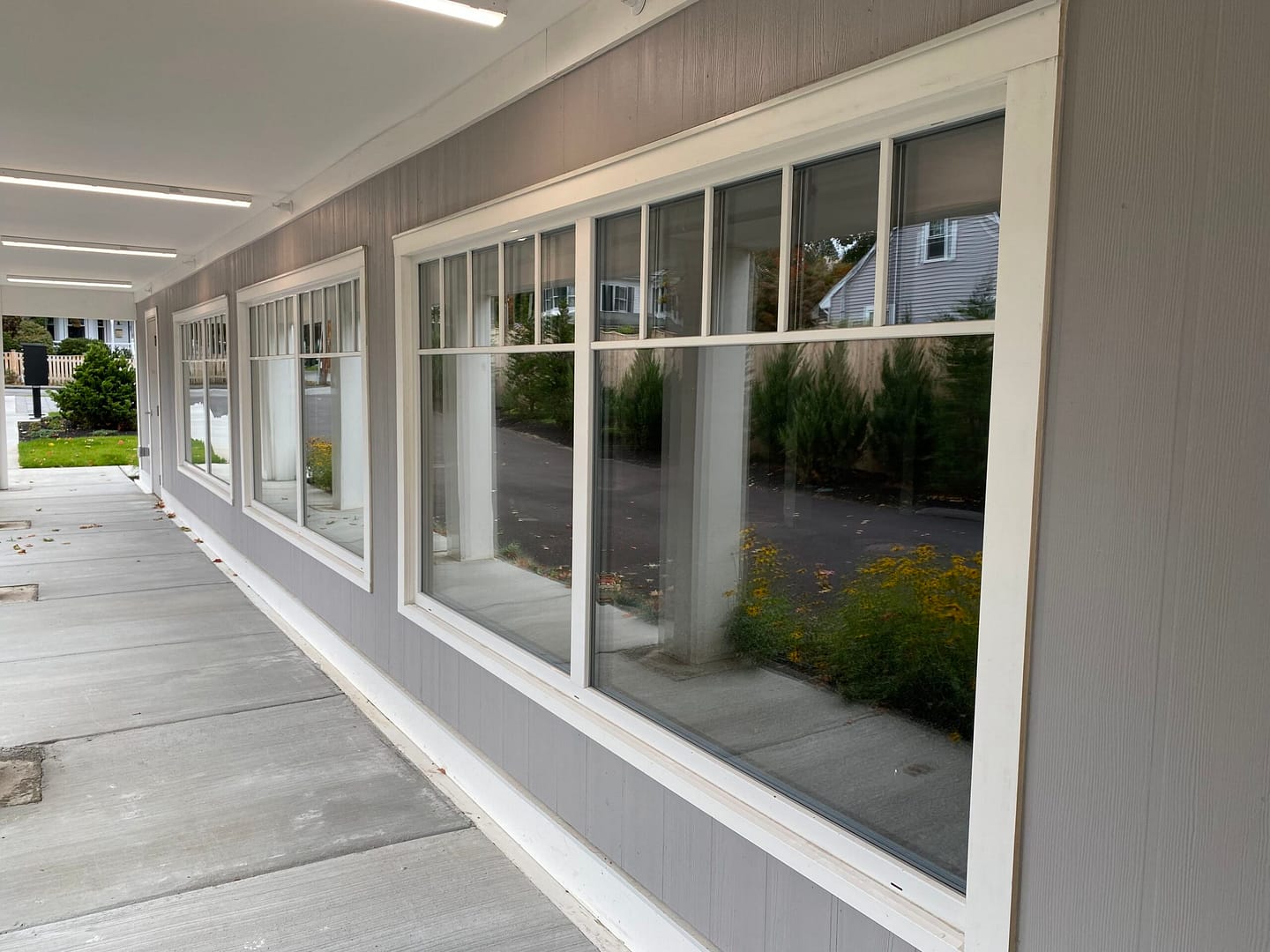

IMG_6020

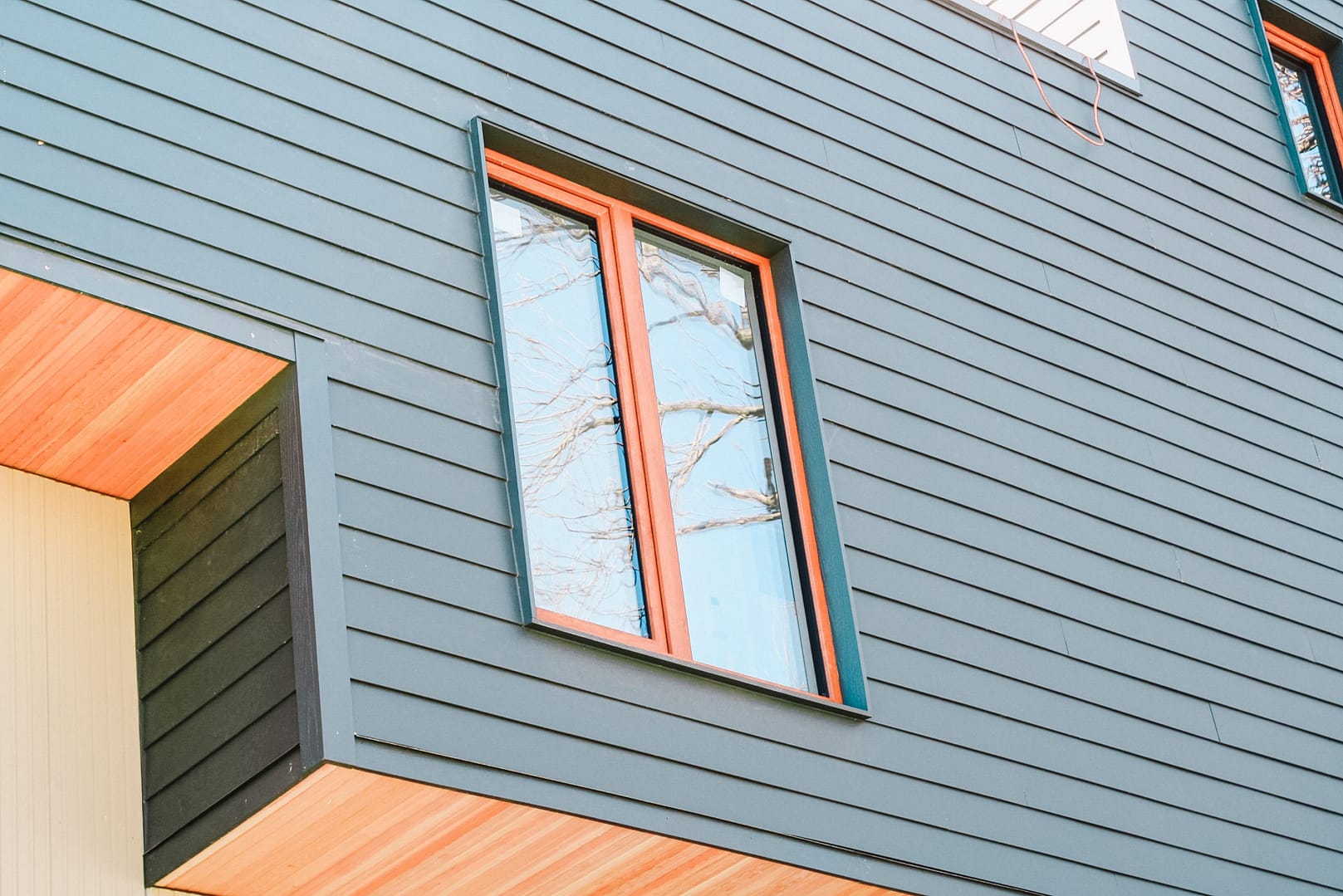

2021-03-30-01.40.55-scaled

PHOTO-2023-10-17-10-15-18 2

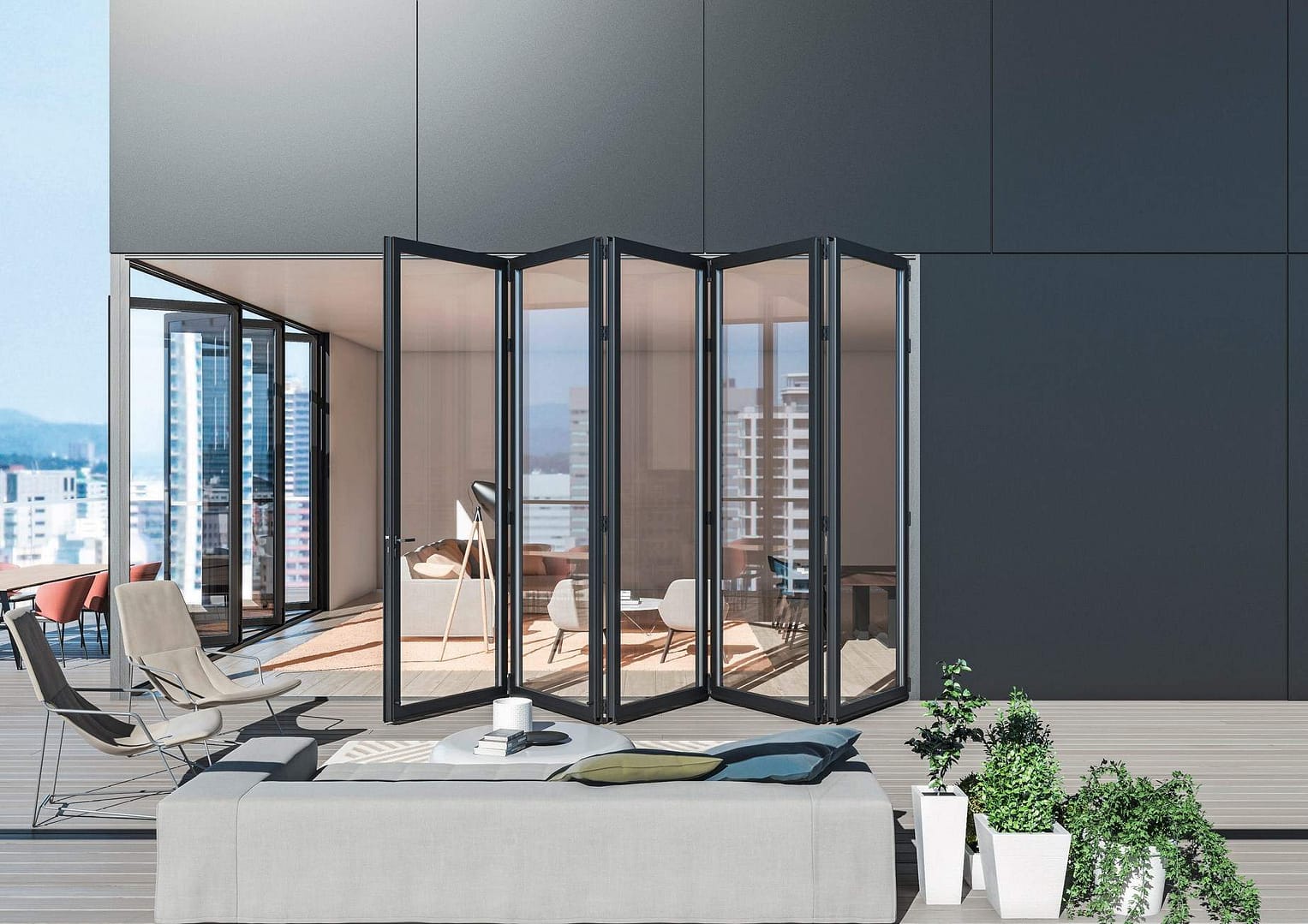

amb-accordion-door

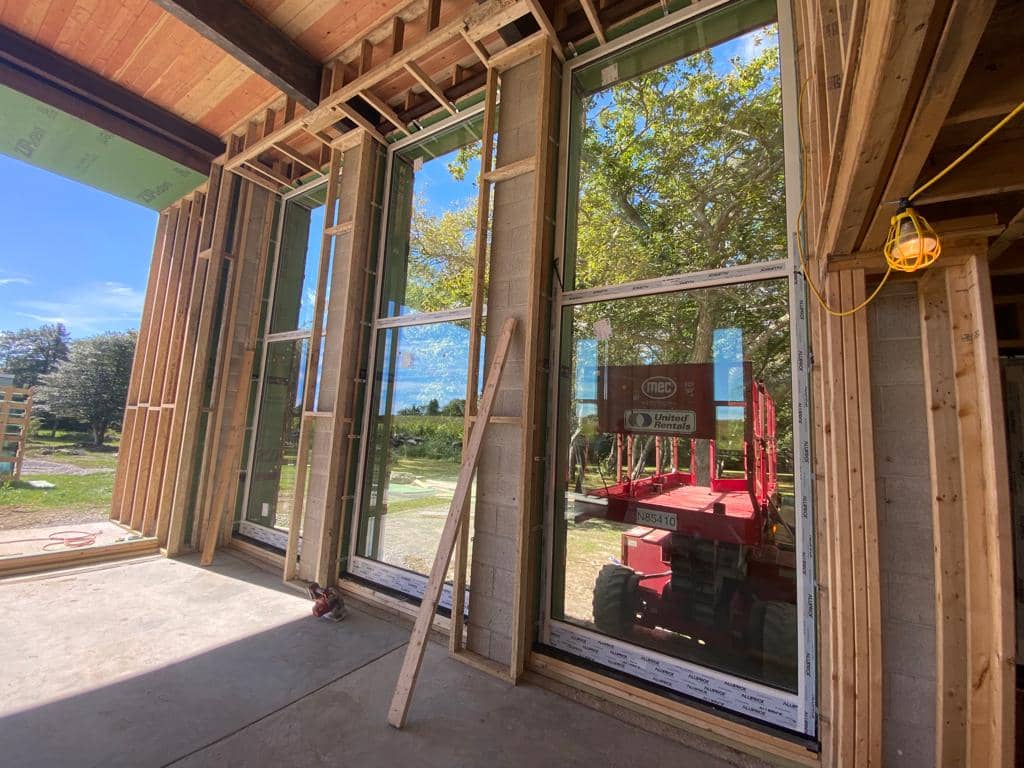

PHOTO-2023-10-16-16-30-57 5

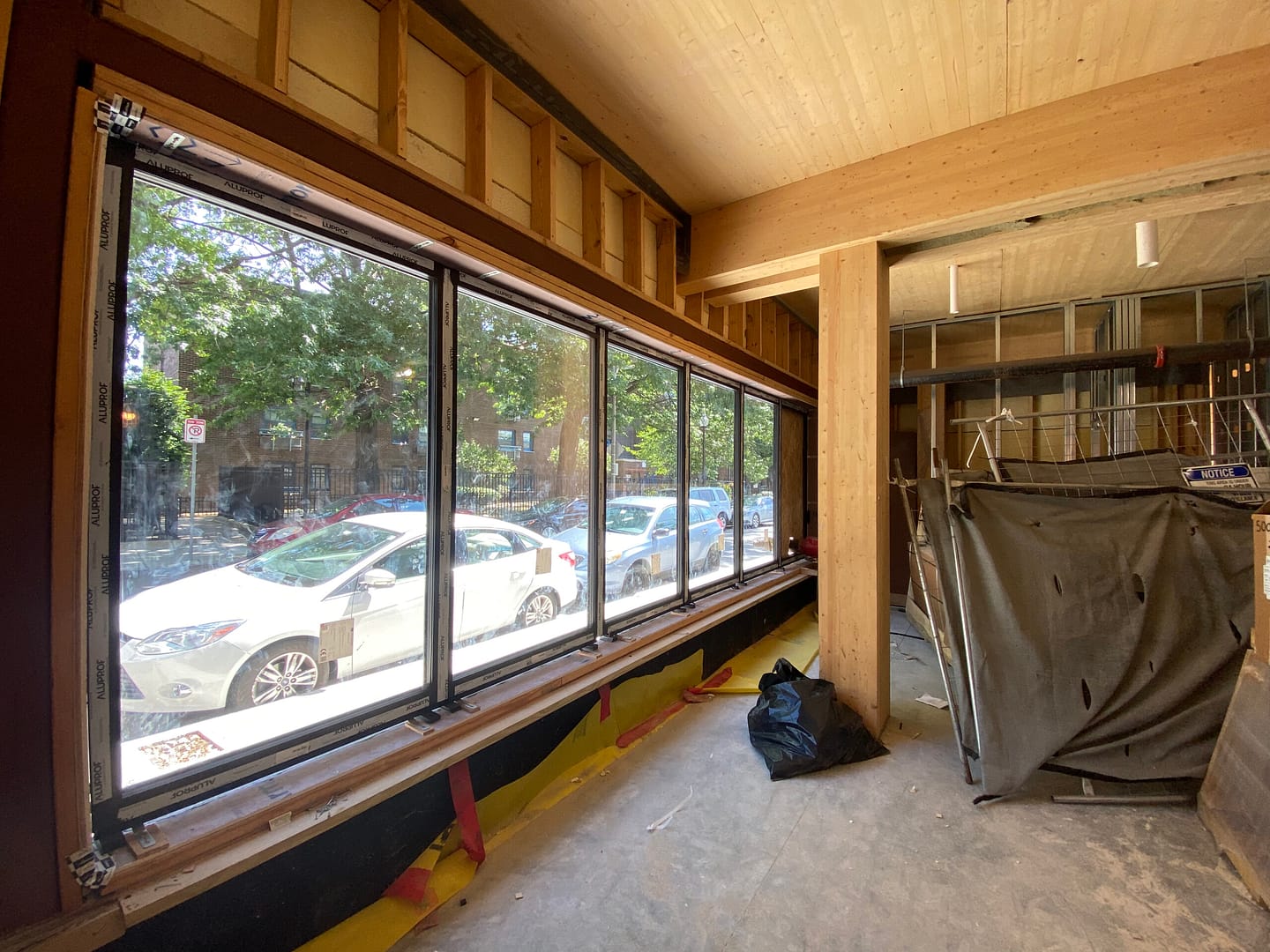

IMG_5403

2021-03-30-01.40.55-scaled

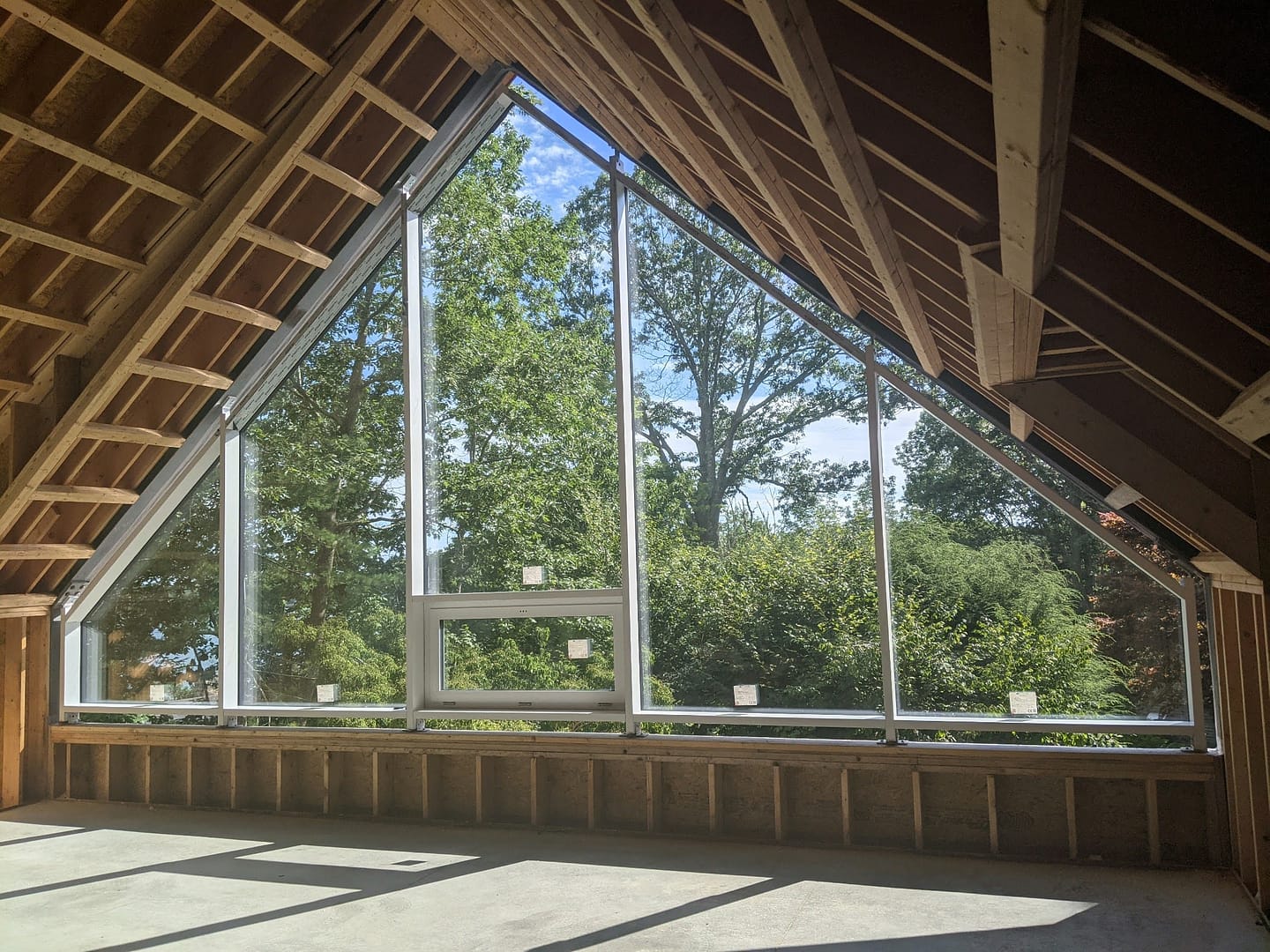

PXL_20220815_193415882

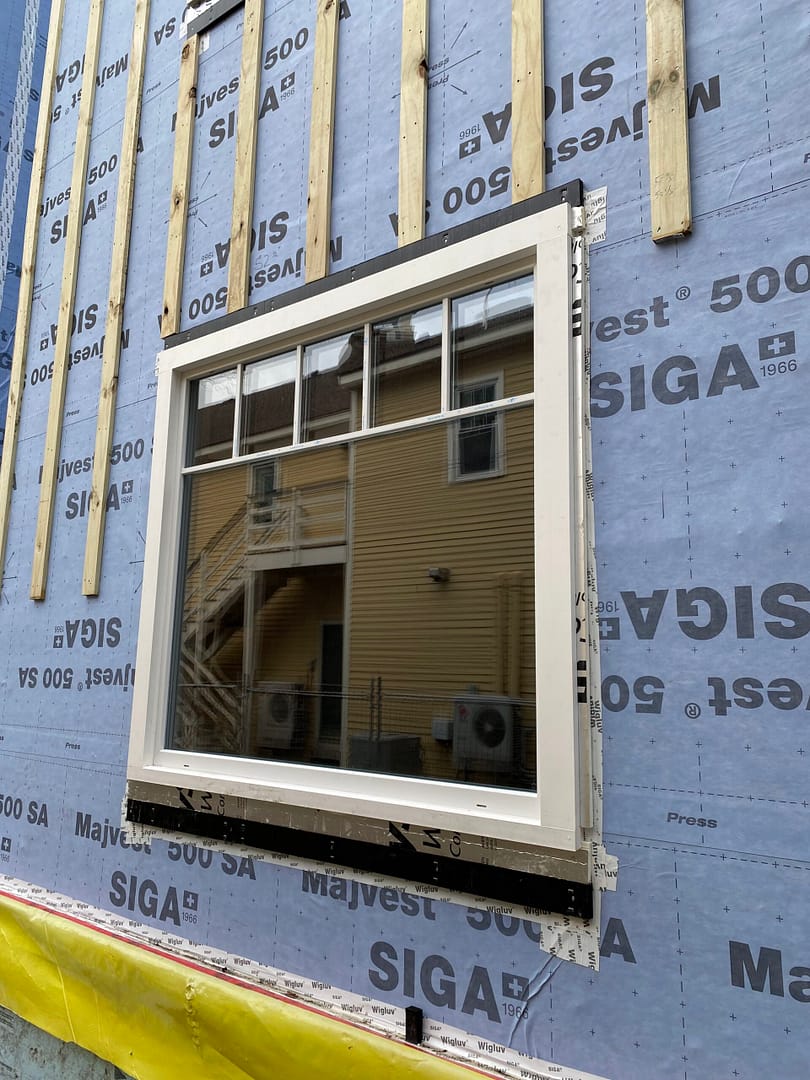

IMG_3737

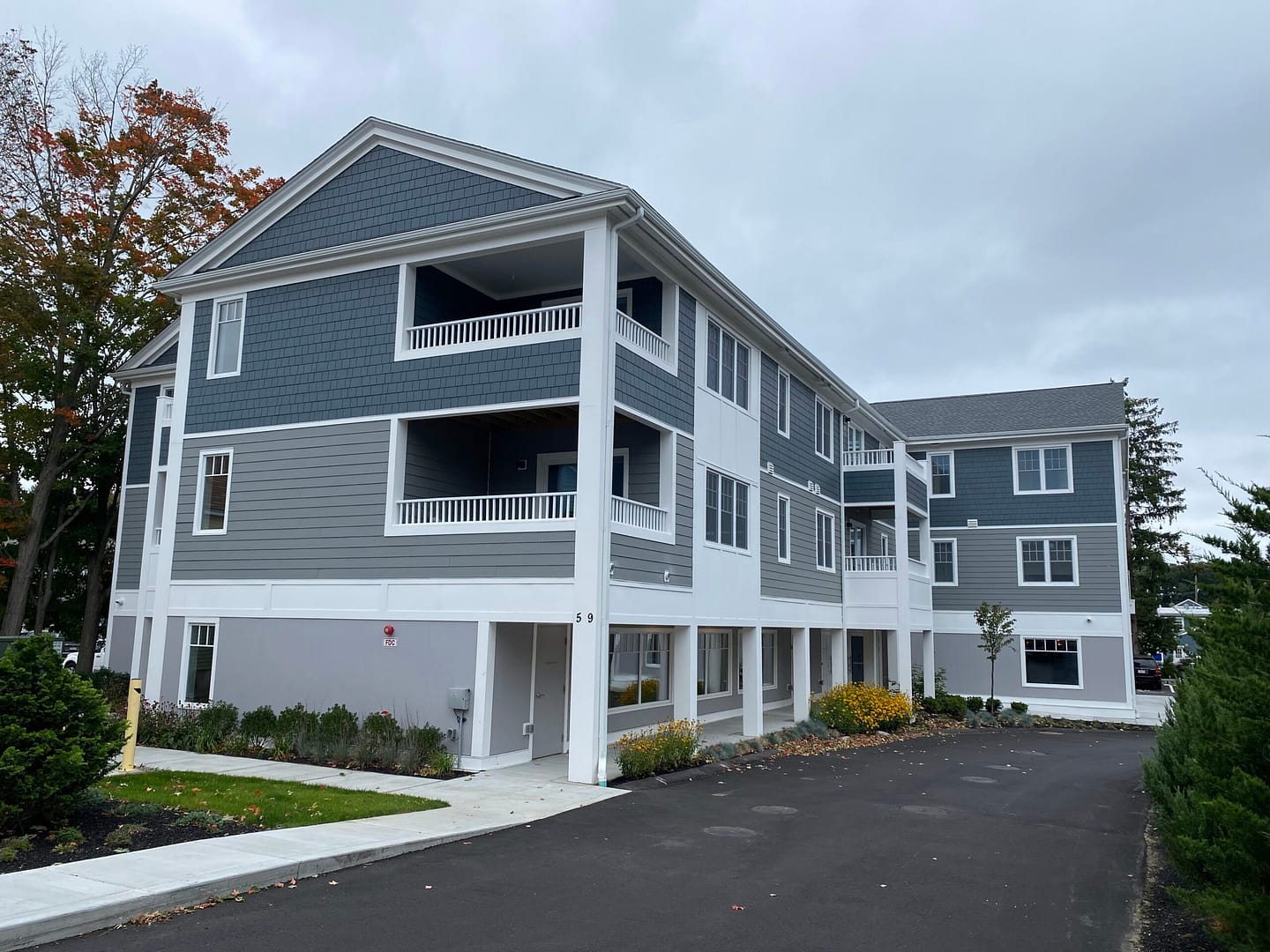

IMG_6021

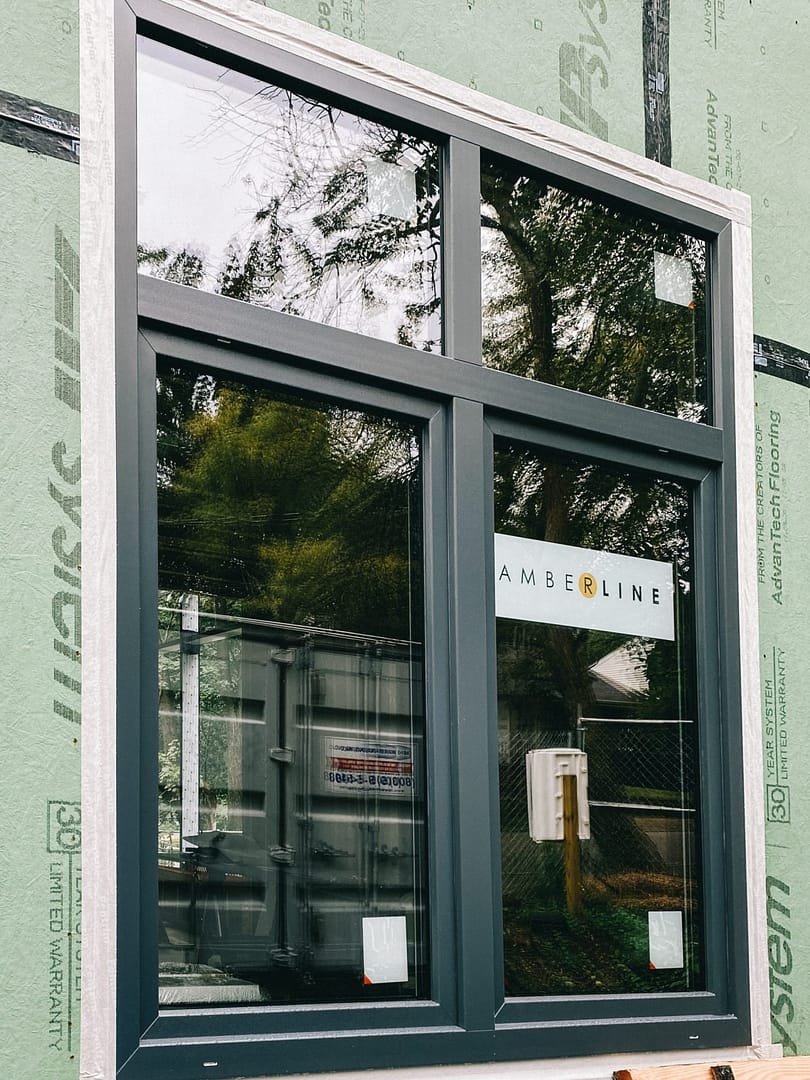

2021-10-05-13.30.49-2-scaled-e1637684063224

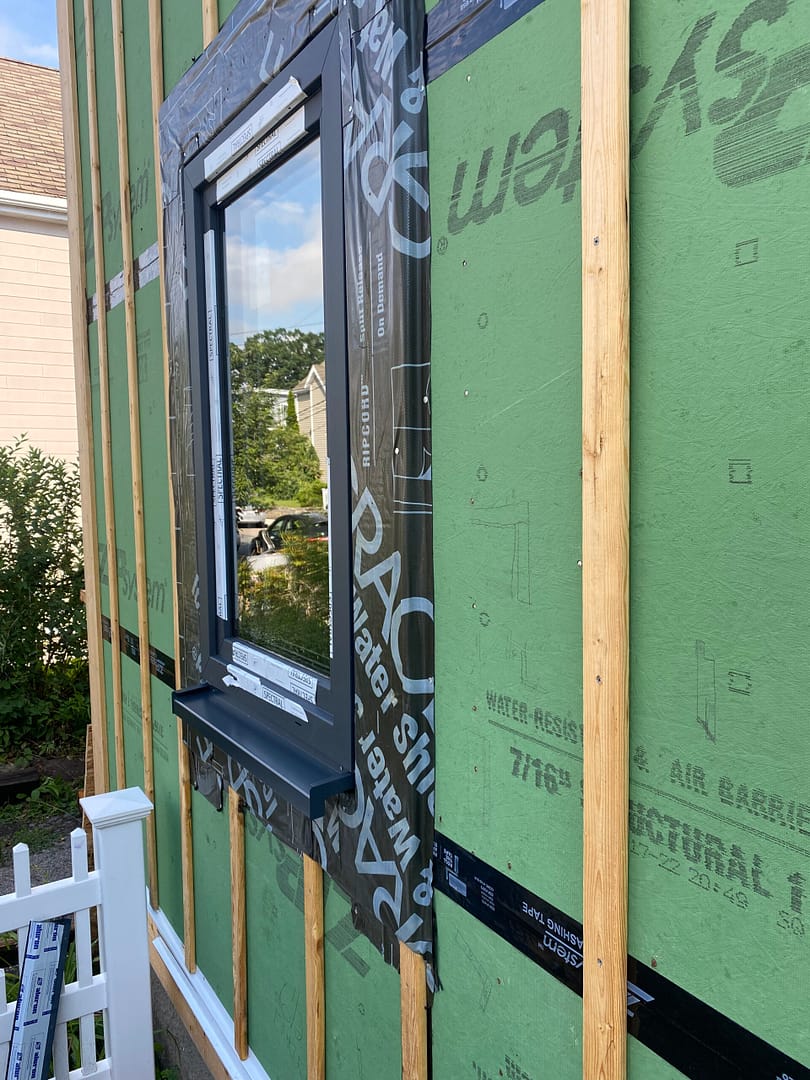

IMG_5121

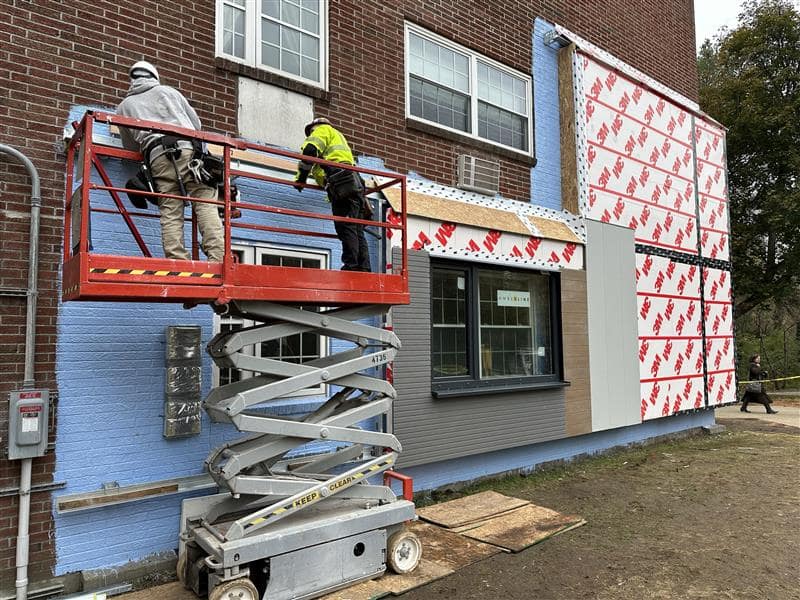

ed6cd1da-58f1-43f8-bcca-4a3445333781

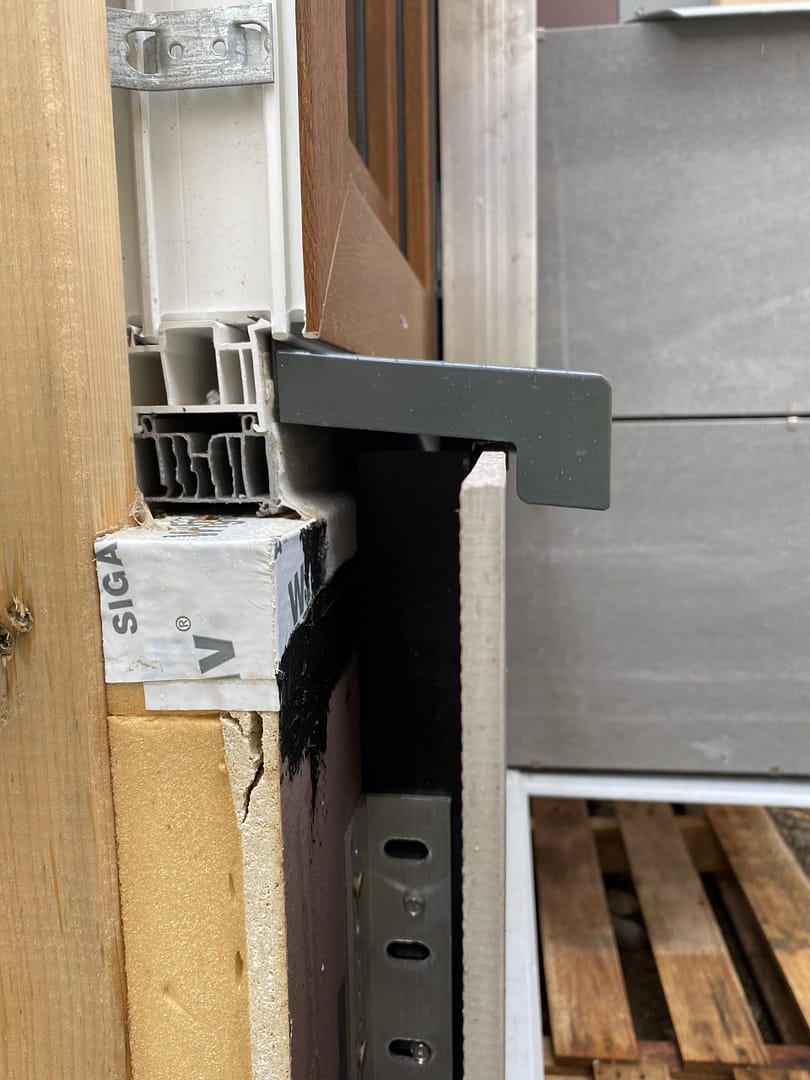

IMG_1704-2-scaled
